Semitec 103AT-2 Cross Frame Lead NTC Thermistor MF52F 10K 3435 With Stuck Points
I Description Of The NTC Thermistor MF52F 10K 3435 With Stuck Points
NTC thermistor refers to a thermistor with a negative temperature coefficient. It is a high-performance ceramic that uses a single high-purity material and has a structure close to the theoretical density. Therefore, while achieving miniaturization, it also has the characteristics of small resistance value, temperature characteristic fluctuations, and fast response to various temperature changes, enabling high-sensitivity and high-precision detection. The company provides small, high-reliability products with various shapes and characteristics to meet the application needs of our customers.
Note: Head size range: 1.8~4MM (customized according to customer requirements)
Epoxy resin color: black, blue (customized according to customer requirements)
Pin type: with card points, straight feet, side by side (customized according to customer requirements)
II Application range Of The NTC Thermistor MF52F 10K 3435 With Stuck Points
1. Air conditioning equipment, heating equipment, medical equipment, temperature control instruments, electronic desk calendars, perpetual calendars, gift toys, indoor thermometers, remote controls, electronic gifts, electronic thermometers and hygrometers, automotive temperature measurement, electronic perpetual calendars, rechargeable battery packs and chargers , PCB, CPU, TCXO, etc. temperature compensation, switch;
2. Various room temperature temperature sensors;
3. It can completely replace the Shizuka 103AT specification.
III Features Of The NTC Thermistor MF52F 10K 3435 With Stuck Points
1. With positioning steps, it is convenient for automatic welding and protects the chip.
2. Good resistance consistency, strong interchangeability, stable and reliable
3. Operating temperature range -50C~+125C
4. Other electrical parameters and sizes can be made according to your needs
IV Ordering code Of The NTC Thermistor MF52F 10K 3435 With Stuck Points
| MF52 | A | xxx | x | xxxx |
| (1) | (2) | (3) | (4) | (5) |
- Epoxy coating thermistor MF52 series
- Lead wire style code :
Model A: Tin. Plated copper wire
Model B: Enameled wire
Model C: High temperature PTFE wire
Model D: PVC insulation wire
Model E: Tie bar steel wire
Model F: Customer require
- Resistance value at 25°C
- Resistance tolerance code : (F:±1%, G:±2%, H:±3%, J:±5%, K:±10%)
- Beta value
V Parameter Of The NTC Thermistor MF52F 10K 3435 With Stuck Points
| Part No. | Rated Resistance
R25 | B Value
(25/50°C) | Rated Power (mW) | Disst. Coef.
(mW/°C) | Themal time Constant (S) | Operating
Temp.
(°C) |
| MF52***3100 | 0.1~20 | 3100 | ≤50 | ≥2.0
In Still Air | ≤7
In Still Air | -55~+125°C |
| MF52***3270 | 0.2~20 | 3270 |
| MF52***3380 | 0.5~50 | 3380 |
| MF52***3470 | 0.5~50 | 3470 |
| MF52***3600 | 1~100 | 3600 |
| MF52***3950 | 5~100 | 3950 |
| MF52***4000 | 5~100 | 4000 |
| MF52***4050 | 5~200 | 4050 |
| MF52***4150 | 10~250 | 4150 |
| MF52***4300 | 20~500 | 4300 |
| MF52***4500 | 20~500 | 4500 |
Common parameters: 10K, 50K, 100K; common B value: 3435, 3950;
Common wire diameters: 0.18, 0.3, 0.4, etc. The materials are pure copper and copper clad steel.
VI Actual Product Photo Of The NTC Thermistor MF52F 10K 3435 With Stuck Points

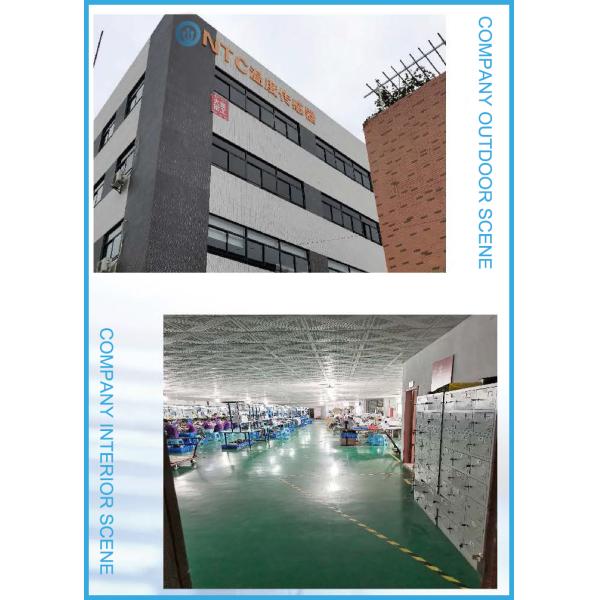

VII Factory Of The NTC Thermistor MF52F 10K 3435 With Stuck Points
VIII Inspection Equipments Of The NTC Thermistor MF52F 10K 3435 With Stuck Points
