4532 Surface Mount Gas Discharge Tube GDT SMD230XM 1812 230V 3KA 750V 0.5pF
I Gas Discharge Tube Description
Gas discharge tubes (GDT) use noble gasses enclosed in ceramic tubes to provide an alternate circuit path for voltage spikes.The ceramic envelope and with nickel connectors allow for high loads and Ampfort offers products that function at 20KA,40KA,50KA,60KA,100KA&150KA.The breakdown voltages of the devices have a wide range (up to 20% tolerance).Major applications are high frequency telecommunication lines,stations, security systems,HID and high quality Surge Protection Devices (SPD).
II Gas Discharge TubeFeatures
■ RoHS & HF compliant
■ DC Spark-over voltage: 75~600V
■ Stable breakdown voltage.
■ High insulation resistance.
■ High holdover voltage.
■ Large absorbing transient current capability.
■ Low Capacitance
■ High insulation resistance
■ Low capacitance (≤0.5pF)
■ 3000A 8/20μs maximum surge current capacity in accordance with IEC61000-4-5
■ 4KV 10/700μs maximum surge rating in accordance with ITU-TK.21
■ Surface mounted gas arrester
■ Micro-Gap Design
■ Size 4532(1812)
■ Storage and operating temperature: -40 ~ +85 ℃ ℃
■ Meets MSL level 1, per J-STD-020
III Gas Discharge Tube Recommended Applications
■ Communication equipment
■ CATV equipment
■ Test equipment
■ Data lines
■ Power supplies
■ Telecom SLIC protection
■ Telecommunications
■ Repeaters, Modems
■ Telephone Interface, Line cards
■ Data communication equipment
■ Line test equipment

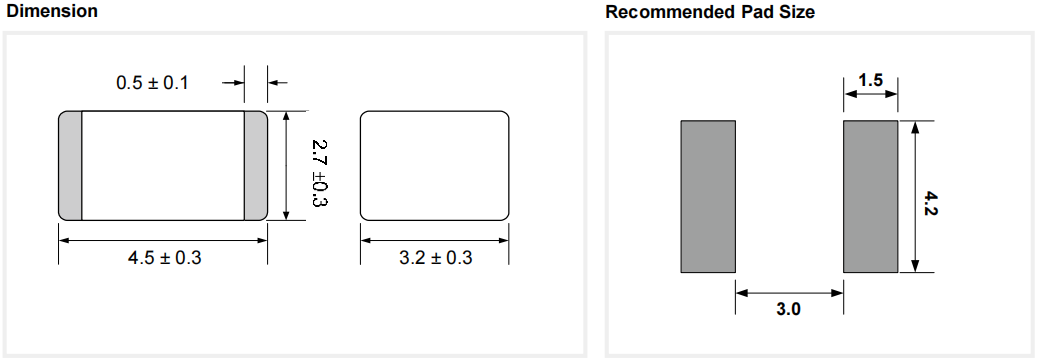

IV Gas Discharge Tube Size (mm)
V Gas Discharge Tube Electrical Parameters
| Part. Number | DC Spark-over Voltage(V) | 1KV/μs (V) | Impulse Life | Insulation Resistance (GΩ) | Capacitance 1MHz(PF) | Nominal Discharge Impulse Current(A) |
| SMD70XM | 70(50～90) | 600 | 300 | 1 | 0.5 | 3000 |
| SMD75XM | 75(55～95) | 600 | 300 | 1 | 0.5 | 3000 |
| SMD90XM | 90(63～117) | 700 | 300 | 1 | 0.5 | 3000 |
| SMD120XM | 120(84～156) | 700 | 300 | 1 | 0.5 | 3000 |
| SMD150XM | 150(105～195) | 750 | 300 | 1 | 0.5 | 3000 |
| SMD200XM | 200(140～260) | 750 | 300 | 1 | 0.5 | 3000 |
| SMD230XM | 230(161～299) | 750 | 300 | 1 | 0.5 | 3000 |
| SMD300XM | 300(210～390) | 800 | 300 | 1 | 0.5 | 3000 |
| SMD350XM | 350(245～455) | 900 | 300 | 1 | 0.5 | 3000 |
| SMD400XM | 400(280～520) | 950 | 300 | 1 | 0.5 | 3000 |
| SMD420XM | 420(294～546) | 950 | 300 | 1 | 0.5 | 3000 |
| SMD470XM | 470(329～611) | 1000 | 300 | 1 | 0.5 | 3000 |
| SMD500XM | 500(350～650) | 1100 | 300 | 1 | 0.5 | 3000 |
| SMD600XM | 600(420～780) | 1200 | 300 | 1 | 0.5 | 3000 |
